Cast Mold Aluminum Plate
Weldable, corrosion-resistant 5000-series cast plate for tanks, enclosures, trailers, outdoor parts, fixtures and tooling, cut to your size with mill certs on every order.
Enter your size
Decimals or fractions, like 12.5 or 12 1/2. Cut to order up to 60.5 × 144.5 in.
Mill certifications included with every option. Certification requirements
Factos prices your cut instantly in the cart.
Standard cut tolerance -0.00 in / +0.125 in. Cutting included. Shipping and tax extra.
Cast plate and wrought 5000-series alloys
The 5000 cast plate selection here is distinct from wrought 5052, 5083 and 5086 products. The catalog family name does not establish certification to one of those wrought grades or its H temper.
In wrought 5000-series alloys, magnesium and work hardening provide strength. H32, H116 and H321 identify different material conditions; the exact alloy and temper belong in the drawing and material certification.
Matching the material to the application
Wrought 5052 is commonly associated with formed panels and enclosures; 5083 and 5086 with marine and transport fabrication. These broader family examples do not identify the grades supplied by the cast plate selection.
For cast plate used in fixtures or tooling, confirm the producer’s specification, surface condition and dimensional requirements. Sharp tooling and effective chip evacuation help machining.

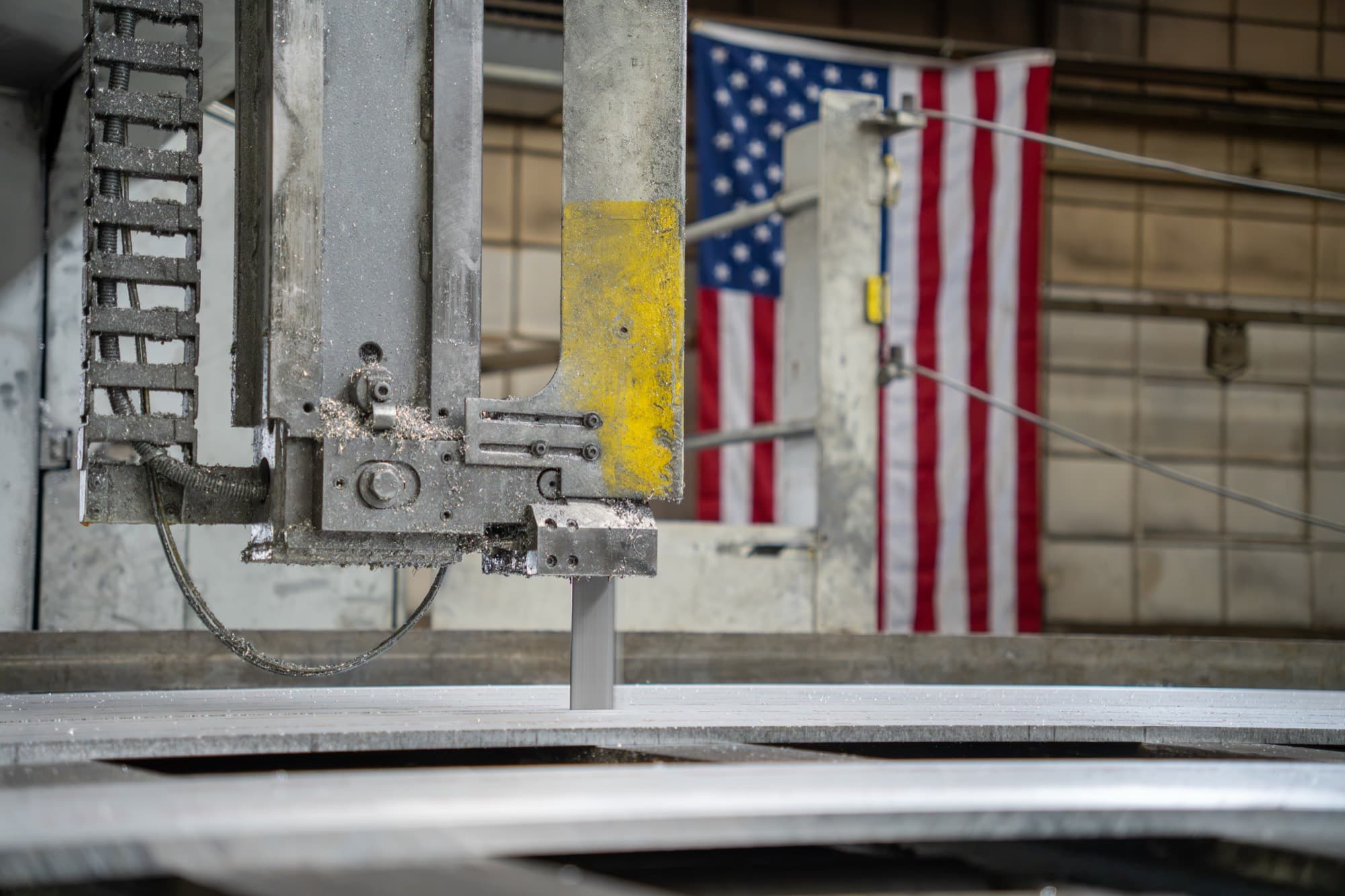

Saw cuts and machining allowance
Our standard saw-cut tolerance is +1/8″ / −0″ on cut length and width. Allow material for facing and finish machining. A different tolerance agreed on your order takes precedence.
Plate thickness, flatness and surface condition follow the supplied mill or producer specification. Full mill-stock pieces ship uncut and retain mill tolerances.
Mill certificates with your order
Mill certifications are included. Open or download certificates for your assigned material from My Orders once available. Specify DFARS or Domestic when your order requires it.
This ATP5 example reports typical properties. The producer and documentation for your supplied cast plate determine its requirements.
Cast plate producer certificate example (ATP5) (PDF)Redacted example; your order’s certificate identifies the actual supplied material.
How to read a mill certificate
Frequently asked questions
What is cast mold aluminum plate?
Cast mold aluminum plate is 5000-series cast plate of about 94.8% aluminum, 4.0% magnesium, 0.7% manganese and 0.25% chromium. It is weldable and corrosion resistant, and is used for tanks, enclosures, trailers, outdoor parts, fixtures and tooling.
Is cast mold aluminum plate the same as wrought 5052, 5083 or 5086?
No. This page sells cast mold aluminum plate (5000-series cast). Wrought 5052, 5083 and 5086 are not stocked. Contact sales@noxmetals.co for wrought plate.
Can cast mold aluminum plate be welded?
Yes. Cast mold aluminum plate is weldable and corrosion resistant.
How large can you cut cast mold aluminum plate?
Up to 60.5 × 144.5 in. The size builder on this page shows the thicknesses in stock now.
Can I buy a single piece of cast mold plate?
$90 order minimum. No minimum quantity, so a single piece is fine.
How fast can I get a price on a custom size?
Instantly online, in under 60 seconds. Enter alloy, temper, size and quantity for a delivered price and ship date.
When will my cast mold plate ship?
Your ship date is shown with your instant quote, before you order.
What tolerance do you cut cast mold plate to?
Standard saw-cut tolerance is −0 / +1/8″ on length and width, so pieces arrive slightly oversize for machining to finished size. Tighter is available on request.
Do you include mill certs with cast mold plate?
Yes. Full mill certs with heat/lot traceability ship with every order and are saved in your portal.
Can I reorder the same cut sizes later?
Yes. Reorder any past configuration from your Nox portal. It's priced at today's market price, so the price may vary.
